Nine Mile Location: Washington, USA Size: 2.0 m Power: 7.8 MW Net Head: 19.5 m Scope of Work: Two new Seagull turbines Two distributor assemblies Two draft tube elbows Two new synchronous AC generators New static excitation New digital governor New controls Site field supervision
Norfolk – East Norfolk Location: New York, USA Size: 3.22 m Power: 6.78 MW Net Head: 39.9 m Scope of Work: Two Kaplan conversions and turbine rehabilitation
Dells Location: Wisconsin, USA Size: 2.94 m Power: 2.6 MW Net Head: 7.62 m Scope of Work: Three new propeller turbines and generators Turbine rehabilitation New draft tubes Installation supervision
Norman Location: Ontario, Canada Size: 3.58 m Power: 2.7 MW Net Head: 5.5 m Scope of Work: Five new four-blade propeller runners Five new sets of wicket gates Five turbine guide bearings and packing box Rehabilitation of units 1-5 Field work Site Machining
Chalk Hill Location: Michigan, USA Size: 2.8 m Power: 2.8 MW Net Head: 8.53 m Scope of Work: Conversion of a fixed blade propeller to a fully adjustable vertical Kaplan unit Rehabilitation of distributor components New wicket gates Field service supervision Field machining of discharge ring Supply of new static excitation system Supply of generator…
London Location: West Virginia, USA Size: 4.29 m Power: 6.2 MW Net Head: 7 m Scope of Work: Five New Kaplan blades Refurbishment of Kaplan runner Transportation Field Service Advisor

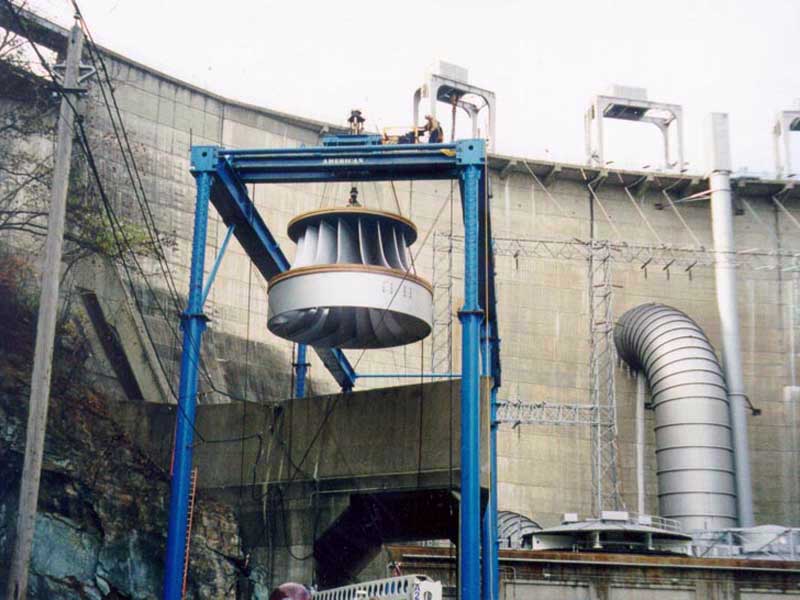

Smith Mountain Location: Virginia, USA Size: 6.1 m Power: 191 MW Net Head: 54.56 m Scope of Work: Model test Two 241” Francis runners Installation
Michigamme Location: Michigan, USA Size: 2.08 m Power: 5.8 MW Net Head: 18.8 m Scope of Work: Kaplan conversion and turbine rehabilitation FERC mandated minimum flow requirements met without loss of generation Improved operating range without extensive civil modifications Existing generator refurbished and reused New blade control system integrated with existing governor Ten months from…

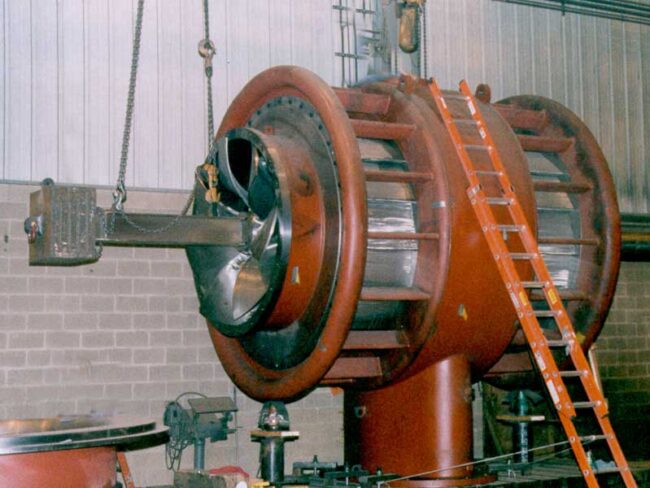

Bishop’s Falls Location: Newfoundland, Canada Size: 1.75 m Power: 3.3 MW Net Head: 11.2 m Scope of Work: Six existing turbines replaced with new Seagull units New digital governors for Units 1-7 Highly compressed project schedule Plant capacity increased from 14.4 MW to over 20 MW Energy generation increased by over 30%
